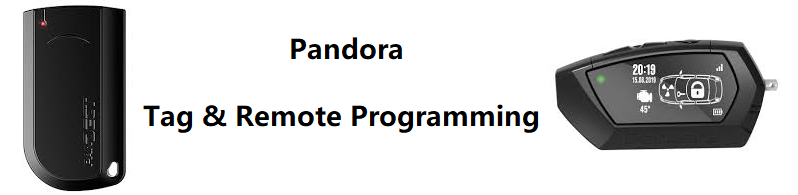

Pandora Tag & Remote Programming

1 April 2020 | Admin

Please be aware the below is for guidance only ( all this Information can be found within the alarms user guide supplied with the alarm when the system was installed ). If you enter the engineers menu and don't follow every step correctly you may immobilise the vehicle and require an engineer call out! We will not be held responsible.

It is also a good idea you have the Pandora emergency override card to hand incase you make a mistake and the vehicle becomes immobilised. Please be aware if your vehicle has a PTS button immobiliser you will need to press and hold the Valet switch for 10 seconds rather than turning the ignition on to exit programming mode. If unsure please contact your installing dealer.

This guide covers Bluetooth Tag and Remote Pairing For all Pandora alarm systems excluding the Pandora Professional V1 & Pandora Light models.

Pandora Mini BT V1 Tag Pairing without LED

Ignition off
press valet button once wait 1 second
press valet button once wait 1 second
press valet button once wait 1 second
press valet button once wait 1 second
Wait a further 3 seconds then press the valet button 1 time.
You will hear 1 bleep from the siren
Press and hold the ADR Tag button for 6 seconds ( While your holding the button on the tag it will flash once per second / release on 6th flash )
Siren will chirp after a few seconds, follow the above by holding the ADR Tag button for 6 seconds on each tag ( one at a time )
Each time a tag is confirmed the siren will chirp
Once all ADR Tags have been learned into the system simply press the valet button once
After 10 seconds turn the vehicles ignition on then off ( vehicle will be immobilised during this phase )
Exit vehicle with the keys and wait 10 seconds
With the original remote key lock / unlock / lock the doors ( siren will now chirp )
Get in and start the vehicle as normal

Pandora Mini BT V2, Light Pro V1 ( With OLED Remote ), Smart Pro V1 & V2 Tag Pairing

Ignition off
press valet button once wait 1 second
press valet button once wait 1 second
press valet button once wait 1 second
press valet button once wait 1 second
LED WILL FLASH GREEN. RED, GREEN, RED
Wait a further 3 seconds then press the valet button 1 time.
You will hear 1 bleep from the siren ( LED will go GREEN )
Press and hold the ADR Tag button for 6 seconds ( While your holding the button on the tag it will flash once per second / release on 6th flash )
Siren will chirp after a few seconds, follow the above by holding the ADR Tag button for 6 seconds on each tag ( one at a time )
Each time a tag is confirmed the siren will chirp
If you have a Light Pro V1 with a OLED remote you will also need to hold lock / unlock & F Buttons for 1 second then release ( siren will chirp once paired )
Once all ADR Tags have been learned into the system simply press the valet button once
After 10 seconds turn the vehicles ignition on then off ( vehicle will be immobilised during this phase )
Exit vehicle with the keys and wait 10 seconds
With the original remote key lock / unlock / lock the doors ( siren will now chirp )
Get in and start the vehicle as normal

Pandora Light Pro V2, Pandora Elite Tag Pairing 1 TAG ONLY

Ignition off
press valet button once wait 1 second
press valet button once wait 1 second
press valet button once wait 1 second
press valet button once wait 1 second
LED WILL FLASH GREEN. RED, GREEN, RED
Wait a further 3 seconds Press and hold valet button for 1 second ( Interior Buzzer will bleep once / then release )
Press the Valet Button once again ( Interior Buzzer will bleep once )
Press the Valet Button once again ( Interior Buzzer will bleep once / LED will now be GREEN )
Press and hold the ADR Tag button for 6 seconds ( While your holding the button on the tag it will flash once per second / release on 6th flash )
Once the tag is paired / confirmed the siren will chirp once and LED will go RED.
After 10 seconds turn the vehicles ignition on then off ( vehicle will be immobilised during this phase )
Exit vehicle with the keys and wait 10 seconds
With the original remote key lock / unlock / lock the doors ( siren will now chirp )
Get in and start the vehicle as normal

Pandora Light Pro V2, Pandora Elite Tag Pairing 2nd TAG

Ignition off
press valet button once wait 1 second
press valet button once wait 1 second
press valet button once wait 1 second
press valet button once wait 1 second
LED WILL FLASH GREEN. RED, GREEN, RED
Wait a further 3 seconds Press and hold valet button for 1 second ( Interior Buzzer will bleep once / then release )
Press the Valet Button once again ( Interior Buzzer will bleep once )
Press the Valet Button 2 times ( Interior Buzzer will bleep 2 times / LED will now be GREEN )
Press and hold the ADR Tag button for 6 seconds ( While your holding the button on the tag it will flash once per second / release on 6th flash )
Once the tag is paired / confirmed the siren will chirp once.
After 10 seconds turn the vehicles ignition on then off ( vehicle will be immobilised during this phase )
Exit vehicle with the keys and wait 10 seconds
With the original remote key lock / unlock / lock the doors ( siren will now chirp )
Get in and start the vehicle as normal

Pandora Light Pro V2, Pandora Elite Tag Pairing 3rd TAG

Ignition off
press valet button once wait 1 second
press valet button once wait 1 second
press valet button once wait 1 second
press valet button once wait 1 second
LED WILL FLASH GREEN. RED, GREEN, RED
Wait a further 3 seconds Press and hold valet button for 1 second ( Interior Buzzer will bleep once / then release )
Press the Valet Button once again ( Interior Buzzer will bleep once )
Press the Valet Button 3 times ( Interior Buzzer will bleep 3 times / LED will now be GREEN )
Press and hold the ADR Tag button for 6 seconds ( While your holding the button on the tag it will flash once per second / release on 6th flash )
Once the tag is paired / confirmed the siren will chirp once.
After 10 seconds turn the vehicles ignition on then off ( vehicle will be immobilised during this phase )
Exit vehicle with the keys and wait 10 seconds
With the original remote key lock / unlock / lock the doors ( siren will now chirp )
Get in and start the vehicle as normal

Pandora Elite OLED Remote Pairing

Ignition off
press valet button once wait 1 second
press valet button once wait 1 second
press valet button once wait 1 second
press valet button once wait 1 second
LED WILL FLASH GREEN. RED, GREEN, RED
Press the call button on the RF Module ( Flashing Pandora window LED )
LED on RF Module will go GREEN
You will need to hold lock / unlock & F Buttons for 1 second then release ( siren will chirp once paired )
LED WILL FLASH GREEN. RED, GREEN, RED
After 10 seconds turn the vehicles ignition on then off ( vehicle will be immobilised during this phase )
Exit vehicle with the keys and wait 10 seconds
With the original remote key lock / unlock / lock the doors ( siren will now chirp )
Get in and start the vehicle as normal

Pandora Light Pro V2 OLED Remote Pairing

Ignition off
press valet button once wait 1 second
press valet button once wait 1 second
press valet button once wait 1 second
press valet button once wait 1 second
LED WILL FLASH GREEN. RED, GREEN, RED
Wait a further 3 seconds then press the valet button 1 time.
You will hear 1 bleep from the siren ( LED will go GREEN )
***If the LED in the above step is RED press & hold valet button for 3 seconds ***
You will need to hold lock / unlock & F Buttons for 1 second then release ( siren will chirp once paired )
Press the Valet button once
LED WILL FLASH GREEN. RED, GREEN, RED
After 10 seconds turn the vehicles ignition on then off ( vehicle will be immobilised during this phase )
Exit vehicle with the keys and wait 10 seconds
With the original remote key lock / unlock / lock the doors ( siren will now chirp )
Get in and start the vehicle as normal

If you are unsure on any of the infomation above contact your installing dealer. If you had the product installed by us we are more than happy to help on 07525068291.
